INT-232

RS-232 INTERFACE

Technical data

Electronic power supply 11-28Vdc
Maximum electronics requirements 0,3W (12mA @24Vdc, 24mA @12Vdc)
Output RS-232
Load ratings 16A per channel
Dimensions (W x H x D) 45x58x90 mm (3M DIN rail mounting)

How it works

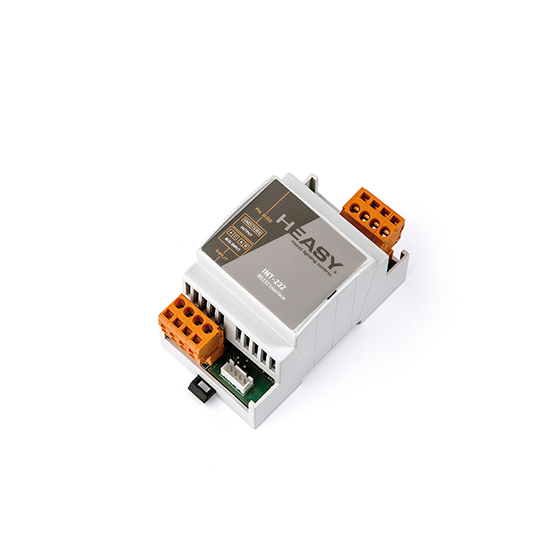

The INT-232 module is rated to connect an H/EASY system (H/BUS) to other devices/ computers through a RS-232 serial port. The module is used to program the H/EASY modules using the software NEO.
img_int_232

RS-232 INTERFACE

icon-hbus-system
The module communicates with other H/EASY system products through the owner bus (H/BUS).
icon-monitor
The NEO software allows the customization of the programing and scenarios of the whole system.
icona-warranty
5 year warranty on control modules.
